Sub-Zero Freezer Leaking Water: Tracing the Source

Start with where the water shows up

Before reaching for the mop, spend two minutes reading the leak, because a built-in hides most of its plumbing but the path the water takes still gives the source away, and it is the first thing a technician will ask about on the phone. Pull out the lowest basket or drawer and look at the floor of the compartment, run a hand slowly along the whole door gasket, check the ice bin, and notice whether the wet patch on the kitchen floor begins at the toe kick or seems to come from under the cabinet sides.

• Ice sheet or standing water on the freezer floor: a frozen or blocked defrost drain
• Drips down the inside of the door or along the gasket: a poor seal or a door left ajar
• Beads of moisture on the outside of the door or trim: warm, humid air meeting a cold surface at a weak seal
• Water at the back or underneath while the inside stays dry: the ice maker supply line, its valve or the evaporation pan
• A wet bin or cubes fused into one block: an ice maker fill problem

Why the defrost drain is the usual suspect

Several times a day a frost-free freezer briefly warms its evaporator coil so the frost on it melts, and that water runs into a trough, down a drain tube and into a shallow pan where warmth from the machinery evaporates it. If crumbs, a stray ice chip or residue from an old spill block that tube, or if the drain freezes solid because a heater or the door seal is failing, the next defrost has nowhere to go. The melt spills onto the compartment floor, refreezes into a glassy layer, and eventually creeps over the front lip and out under the door. Left alone, the coil itself ices over, airflow drops and the freezer begins running warm, which is why a leak and a freezer that is not cold enough so often turn up together. Clearing the drain properly means reaching the trough behind the rear panel of the compartment, so it is not a job for a screwdriver and a hunch, and on a built-in it is worth finding out why the drain blocked so the same sheet of ice does not return a month later.

Door seals, frost and the codes that point to them

A freezer door that does not close fully lets moist air in, that moisture turns to frost, and the frost melts during each defrost faster than the drain can carry it off. Inland neighborhoods such as Rancho Bernardo, Carmel Mountain Ranch and Sabre Springs see warmer summer afternoons than the coast, and warm air holds more moisture, so a weak gasket here tends to frost and sweat more in July than it does in January. For the gasket itself Sub-Zero keeps things simple: power the unit down first, wipe the rubber using a soft cloth dampened in water with a little mild detergent, work baking soda paste into marks that refuse to lift, treat mold or mildew with a 1:10 bleach solution, and keep vinegar and rubbing alcohol away from it entirely. The controls often report a door problem before you see one. On Classic (CL) and Designer (DET, DEC) units, interior lights that go dark can mean a door or drawer was left ajar, since the control shuts them off to keep heat down, so close everything and give it one hour before calling. A flashing Vacuum Condenser message can come from a sealing problem as well as a dirty condenser, and when EC40 appears with Service flashing, a door left ajar is one of the listed causes alongside long compressor run, the sealed system, a fan or a temperature sensor.

Ice maker and water supply leaks

If the freezer makes ice, its water side is the other common source, and those leaks behave differently: the shelves stay dry while water collects behind or under the unit, or the bin fills with a frozen slab. The supply line usually rises through the floor or back wall to a shutoff valve, and a fitting there can weep quietly for weeks. Inside the cabinet, a fill valve that sticks open overfills the mold and spills into the bin. On a Classic (BI) unit, one flashing ice cube icon with no chime is the control's way of saying the fill valve ran open for too long, so it has shut the ice maker down rather than risk a flood; once you have confirmed the water is on and the line is not kinked, hold the Alarm key until CFC (Clear Fault Codes) appears. The water piped into San Diego homes is hard, and over the years mineral scale can stop a valve from seating fully. Our guide to ice maker faults: module or water supply explains how to tell a sticking valve from a failing module.

Melting heavy ice without damage

When the compartment floor or the drain area is buried in ice, the repair starts with a controlled thaw. Turn the unit off and move the food to coolers first: by Sub-Zero's figures, an empty unit with no power usually holds out about 3 hours before the freezer climbs past 20°F (-6°C) and the refrigerator side passes 45°F (7°C), so plan the work instead of propping the door open while you think about it. The method Sub-Zero recommends depends on the line. The Classic (CL) and Designer (DET, DEC) guides say to use a hair dryer on low and keep it moving, while the PRO Series guide calls for a handheld steamer and specifically not a hair dryer. Either way, lay towels down and never pry ice loose with a knife or screwdriver, because one slip can pierce a refrigerant line and turn a drain problem into a sealed system repair. If the ice comes back within a week or two, the cause is still there and the thaw only bought time.

Checks that are safe to do yourself

None of these need anything beyond a towel, a flashlight and a few minutes, and together they settle most of the guesswork before a visit is booked.

• Make sure every door and drawer swings closed on its own and nothing in the bin or on a door shelf is holding it open
• Run the paper test at the corners and along the hinge side, then clean the gasket the way Sub-Zero describes
• Read the display for EC40, Vacuum Condenser, a flashing ice cube or a service indicator, and write down exactly what it shows
• Look for a sheet of ice near the rear panel of the freezer floor
• If water is pooling at the back, close the ice maker supply valve and switch the ice maker off
• Dry everything and note how soon the water returns, since a day, a week or only after heavy use each point to a different fault

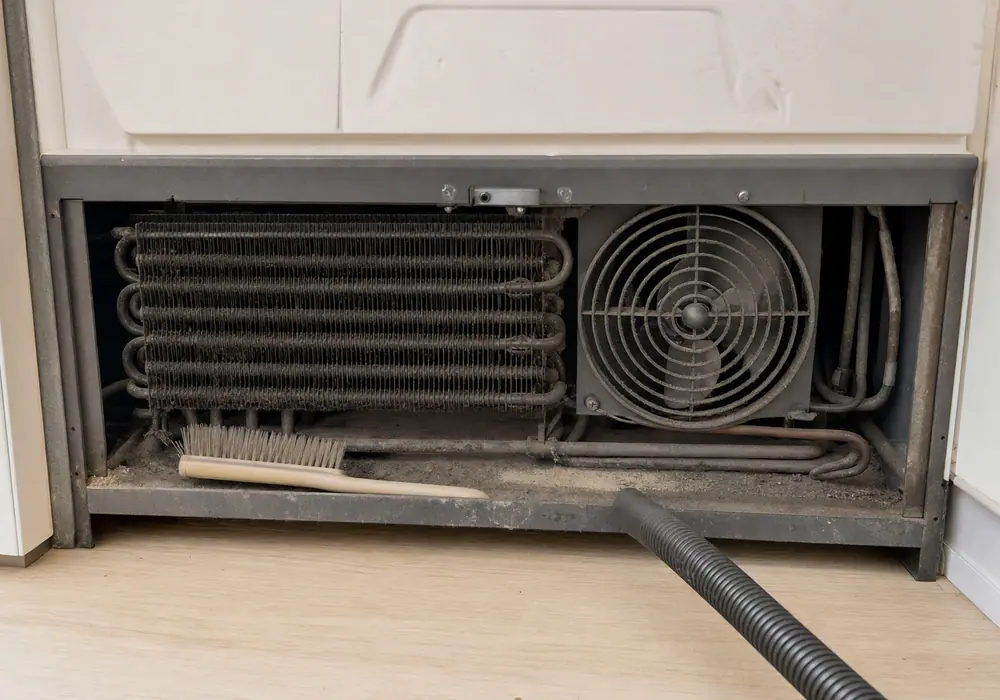

When the leak needs a technician
